Overview

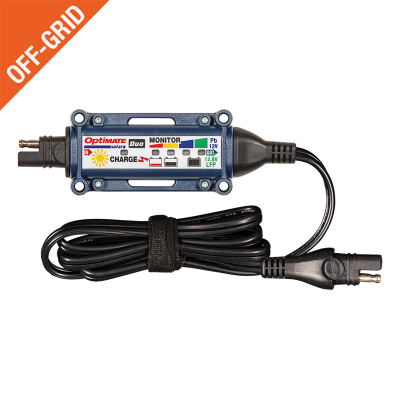

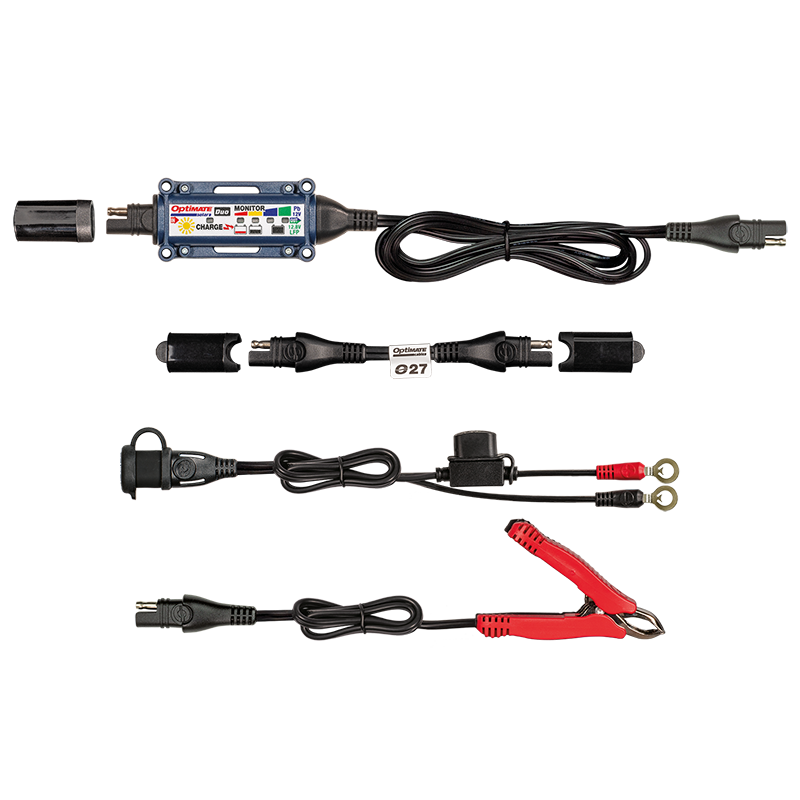

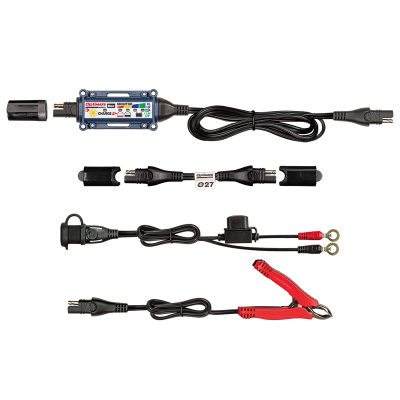

OptiMate Solar DUO, the smart 5 Amp solar controller that safely charges all types of 12V batteries – fully automatic ‘connect & forget’ technology! Works with 12V polycrystalline or mono-crystalline solar panels, with rated output from 10W to 60W. Solar Panel specifications Charges 12V lead-acid + 12.8V / 13.2V lithium batteries. The smart charge controller automatically adjusts charge according to battery type and condition – Connect to the battery and the OptiMate Solar DUO controller does the rest, no supervision required! The fully automatic multi-step program brings the battery safely to full charge and continues to maintain the battery daily – Charger by day! Battery’s state of charge is displayed on the LED panel 24-7 – Monitor by night! The controller kit includes premium quality components 1) OptiMate Solar DUO controller 2) O-27 SAE polarity converter 3) O-01 battery lead 4) O-04 battery clips – for the complete solar charging experience!

Features

• Converts low solar energy to efficient pulse charge.
• DAY: Charge & maintain. NIGHT: monitor charge level.
• Safe to leave connected. Full electronic protection.
• Saves your 'dead' battery from as low as 4V.
• Efficient dual conversion.
• Low power use.

Specifications

• CHARGING AMPS: A from 10-60W panel (max. average current), 3-5A pulse current
• USE: Indoor / Outdoor (lowest temperature: -4°F / -20°C).
• SAVE: Low Volt Start of 4V
• IDEAL FOR: STD, AGM & GEL 12V batteries from 2 – 240Ah and Lithium LFP 12.8V / 13.2V batteries
• INPUT: 15 – 22V
• STYLE: Weatherproof charge controller case.
• INCLUDED: Weatherproof battery lead, standard battery clip set & SAE 2-pin connector
• SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.
• WARRANTY: 3-year limited replacement warranty.

Benefits

CHARGE
Saves flat batteries from as low as 4V with its unique pulse action.Fastest charge is delivered as ‘smart charge’ control selects pulse or continuous charge according to sunlight strength.Intelligent maintenance continues the next day if battery retained charge overnight, otherwise the program reverts to OPTIMIZE step.

MONITOR
Battery condition is displayed every 3 seconds. Ready indication for STD, hi-performance AGM and lithium LFP batteries. Draws less than 0.5mA during monitor mode.Automatically switches to CHARGE when solar power is sufficient.

MOUNTING
The OptiMate DUO charger-monitor controller is separate to the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed. The solar panel must be mounted and angled to receive direct sunlight. The reach / distance between battery and panel is 315cm / 124″. To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate DUO charge-monitor controller.

In The Box

• Weatherproof battery lead
• Standard battery clip set
• OptiMate Solar DUO controller & SAE 2-pin connector
