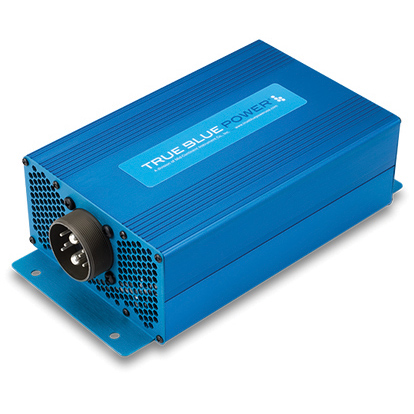

True Blue Power Inverter 6432000-4

0 Reviews 0 Answered Questions
$19541.00/Each
Quantity
Add to Wishlist
Part# 10-07618
MFR Model# 6432000-4

Overview

True Blue Power Inverter 200VA, 115VAC Output, 400Hz Sine Wave 6432000-4

Features

  • Supplies 2,000 watts of wall outlet power
  • Ideal for emergency medical equipment, special mission and VIP cabin configurations
  • Lightweight — 7.7 lbs
  • 93% efficiency
  • Input transient, overload and short-circuit protection — up to 150% of rated load without damage
  • Remote On/Off optional
  • FAA TSO-C73 certified
  • EASA ETSO-C73 certified
  • RTCA DO-160G qualified
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 20 – 36 VDC
  • Input Current: 80A at 28 VDC input
  • Output Voltage: 115 VAC ± 3%
  • Output Power: 2,000 VA
  • Output Frequency: 400 Hz ± 0.1%
  • Output Waveform: Single phase, true sine wave,
  • < 3% total harmonic distortion
  • Weight: 7.7 lbs (3.49 kg)
  • Altitude: 55,000 ft
  • Humidity: Tested to greater than 95% for 10 days,
  • temperature cycle of 75° F to 160° F
  • Temperature: -67°F to +158°F (-55°C to +70°C)
  • Integral Cooling: Dual, electronically-controlled brushless fans
  • Mating Connector: P/N 9018784-1
  • P/N 9018550-2 (cable clamp / backshell)
  • Case: Anodized aluminum extrusion, blue
  • Certification: FAA TSO-C73 certified
  • EASA ETSO-C73 certified
  • RTCA DO-160G qualified
