Overview

Features

• Designed to quickly cut through metal pipes, tubes flat sheets and more
• Exceptional durability extends the life of the wheel for great performance value
• 3M Precision-Shaped Grain cuts exceptionally fast, helping increase productivity
• May be used on a variety of substrates such as carbon steel and stainless steel
• Use with tools and accessories designed for cut-off wheels
• For safety, always use on a tool with an

Specifications

• Abrasive Material: Precision Shaped Ceramic
• Application: Tube Cutting, Cutting
• Attachment Type: Center Hole
• Bond Type: Resin
• Brands: 3M
• Center Hole Diameter (Imperial): 0.25 in, 0.375 in, 0.875 in
• Center Hole Diameter (Metric): 6.35 mm, 9.525 mm, 22.225 mm
• Equipment - Machines: Right Angle Grinders, Straight Cut-off Tools
• Grit: 36+, 60+
• Industries: AOEM, Aerospace, General Industrial, MRO, Marine, Metalworking, Oil&Gas, Transportation & Heavy Equipment
• Maximum Speed: 8500 rpm, 10200 rpm, 12250 rpm, 13300 rpm, 19100 rpm, 25465 rpm
• Net Weight (Imperial): 0.04 lb, 0.07 lb, 0.11 lb, 0.14 lb, 1.52 lb, 2.51 lb, 3.96 lb, 4.89 lb, 5.68 lb, 6.57 lb, 7.63 lb, 9.13 lb, 11.96 lb
• Net Weight (Metric): 18.14 g, 31.75 g, 49.9 g, 62.14 g, 690.37 g, 1137.16 g, 1796.23 g, 2219.88 g, 2575.95 g, 2980.1 g, 3460.91 g, 4139.48 g, 5422.7 g
• Product Color: Black
• Product Form: Cut-off Wheel
• Sub Applications: Gate Removal, Pipe Cutting, Rod Cutting
• Sub Industries: Metal Fabrication
• Wheel Type: T1, T27
• Dimensions and Classifications
• Overall Diameter (Imperial): 3 in, 4 in, 4.5 in, 5 in, 6 in, 7 in
• Overall Diameter (Metric): 76.2 mm, 101.6 mm, 114.3 mm, 127 mm, 152.4 mm, 177.8 mm
• Overall Thickness (Imperial): 0.035 in, 0.04 in, 0.045 in, 0.05 in, 0.06 in, 0.094 in, 0.125 in
• Overall Thickness (Metric): 0.889 mm, 1.016 mm, 1.143 mm, 1.27 mm, 1.524 mm, 2.388 mm, 3.175 mm

Benefits

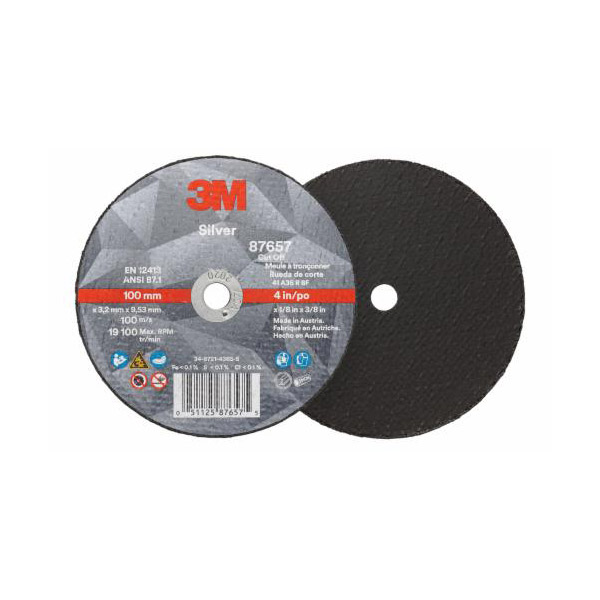

• A Cut Above: The 3M™ Silver Cut-Off Wheel is designed to quickly cut through metal pipes, tubes and flat sheets. This may include use in multiple production Cut-off wheels are used in many industries, such as shipbuilding, rail, general metal fabrication and more. You can rely on this wheel to help you to tackle your toughest metal cutting applications.
• 3M Precision-Shaped Grains: The 3M™ Silver Cut-Off Wheel features 3M Precision-Shaped Grain which continually fractures into super-sharp points and edges that slice cleanly through metal, rather than gouging or plowing as traditional abrasives do. This also helps it to last significantly longer than conventional ceramic grain abrasives while maintaining a high cut-rate over the life of the wheel.
• Safety First: This wheel must be attached to a cut-off wheel tool (sold separately) and should always be used with a wheel guard for safety. The wheel also must have a maximum operating speed greater than or equal to the maximum speed of the power tool used.
• New 3M™ Silver Abrasives: The 3M™ Silver Cut-Off Wheel is part of a new class of 3M abrasives designed to deliver an unbeatable combination of performance and value. Powered by the legendary speed and long life of 3M Precision-Shaped Grain, these new products are ideal for a wide variety of metalworking applications like weld removal, beveling, edge chamfering and more — offering a longer life and faster cut than aluminum oxide, alumina zirconia and other conventional ceramic abrasives.
