ADVANCED FLIGHT SYSTEMS AF-SERIES

From $199.75 to $16110.00
Product Group Description Part No. Price Buy

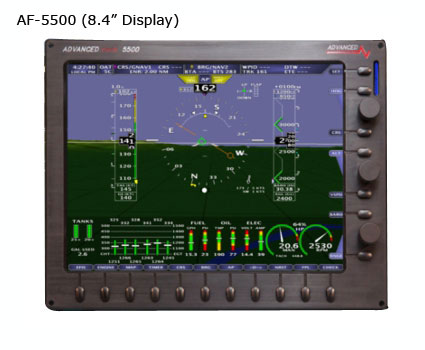

EFISAF-5500 8.4" Display
11-10556
$5606.00
Quantity

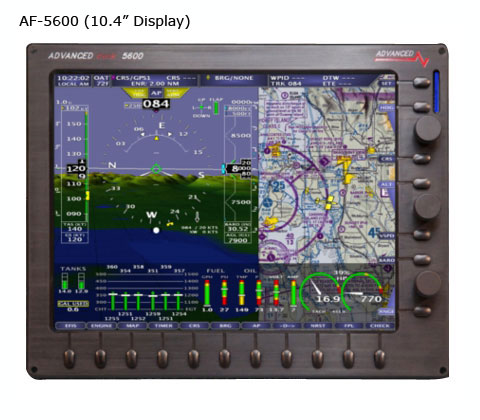

------AF-5600 10.4" Display
11-10557
$6164.00
Quantity
ENGINE MONITOR BOARD
(Does not include probes/sensors)
Engine Board
11-10558
$1044.00
Quantity
EFIS AHRSAHRS Board
11-10559
$2522.00
Quantity
PROBES AND SENSORSAF- 4 Cylinder Sensor Pack
11-04952
$1595.00
Quantity
------AF- 6 Cylinder Sensor Pack
11-04953
$1885.00
Quantity
AFS AUTOPILOTAutopilot 2 Axis with Servos
11-10563
$5075.00
Quantity
------AF-Pilot Autopilot System (STD Servos)
11-11801
$3473.00
Quantity
------Standard Torque Servos
11-10564
$3190.00
Quantity
------Autopilot Controller (no servos)
11-10565
$2900.00
Quantity
EFIS UPGRADESNew High Speed CPU and Base Board
11-10566
$3190.00
Quantity
------Synthetic Vision Upgrade (3400s/3500s units only)
11-10567
$725.00
Quantity
EFIS OPTIONSAF-AOA - AOA Option
11-07181
$860.00
Quantity
------AF-BAT - Battery Pack
11-05624
$550.00
Quantity
------AF-ARINC - Adapter
11-05964
$720.00
Quantity
------AF-MAP - Moving Map Software for AF-3400/3500/4500
11-05963
$718.00
Quantity
------AF-GPS - 5 hz Antenna Puck GPS
11-08324
$421.00
Quantity
------AF-WEATHER - XM Weather Option
11-08325
$1433.00
Quantity
------AFS EFIS Touch screen
11-11789
$1401.00
Quantity
------AFS EFIS AHRS
11-11790
$2102.00
Quantity
------AFS EFIS Engine Board
11-11791
$718.00
Quantity
------AF-VPX-KEY - Vertical Power Interface Software
11-11792
$396.00
Quantity
------Synthetic VIsion
11-08341
$199.75
Quantity
AFSAF-5000 Single Screen EFIS System
11-11833
$8258.00
Quantity
AFSAF-5000 Dual Screen EFIS System
11-11837
$12753.00
Quantity
AFSAF-5200 EFIS Screen
11-11787
$4168.00
Quantity
AFSAF-5600 Single Screen EFIS System
11-11835
$9128.00
Quantity
AFSAF-5600 Dual Screen EFIS System
11-11838
$14427.00
Quantity
AFSAF-5800 EFIS Screen
11-11788
$7540.00
Quantity
AFSAF-5800 Dual Screen EFIS System
11-11839
$16110.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The ultimate panel buiding blocks, the Advanced Flight Systems AF-Series can be configured as an EFIS (EF), Engine Monitor (EM), or Combination (EE) or both with the appropriate hardware modules installed. The systems utilize Advanced Avionics Bus allowing the pilot and copilot displays to exchange screens. The AF-Series are powered by a state-of-the-art certified Crossbow AHRS engine.

  • EFIS — Unlike other systems the horizon display is generated from an internal Crossbow AHRS that is based on certified boards and software. The display features a clear and easy to read airspeed indication with user adjustable color ranges, the altimeter is set using a familiar and convenient adjustment knob (other systems require numerous buttons presses), and the heading display is generated from a remote mounted magnetometer. The heading can be displayed on a tape across the top or with the new EFIS DG©. Other flight instruments functions include a slip ball and user-configurable g-meter.

  • Aircraft Monitoring and Data Acquisition System — Developed from the successful AF-2500 monitor, these systems continuously monitor and display not only all aircraft engine data but several other aircraft functions as well. Unlike other systems, the display can be customized to the user's preference. Any of the standard instruments can be eliminated or added to the screen.

  • Mapping — An optional feature, the AF-3400s/3500s can now be configured with onboard mapping. Position is derived from an outboard GPS signal and displayed on the screen. Several display page options can be selected.





Reviews

Q&A

Q: Is the Advanced Flight Systems AF-Series EFIS FAA Approved for use in certified aircraft?

No, The Advanced Flight Systems EFIS is not FAA approved. This product is intended for use in experimental aircraft only.

Q: Can you tell me what is included in the AFS 5600 single screen EFIS system?

Part # 11-10557 comes with the 10.4" display screen only.
