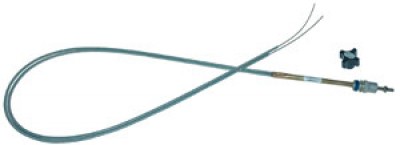

McFarlane Control Turn-To-Lock Dual 12 Ft - MCTL1014D144-PL

0 Reviews 0 Answered Questions
$452.00/Each
Quantity
Add to Wishlist
Part# 05-20531
MFR Model# MCTL1014D144-PL

Overview

Turn-to-Lock Choke Controls for Dual Carburetor 912/914 Series Rotax Engines

Allows a neat, clean installation without a clunky splitter box
These controls feature a turn-to-lock mechanism that requires a quarter turn of the knob to lock or unlock the control at any position. For a non-locking control go to Non-Locking Choke Controls.
  • All metal construction
  • High temperature Teflon lined conduit for smooth, consistent control
    (Cheapy controls with poly liners will not tolerate engine temperatures)
  • Available in 4, 6, 8, 12 foot and custom lengths
    • Measured from panel fitting to end of conduit, wires extend at least 4 inches beyond conduit
    • Easily trimmed to length
  • Adjustable cable stops to limit travel
  • Many knob styles available or provide your own knob with 1/4-20 thread
  • Manufactured to the same quality standards as McFarlane's FAA-PMA parts
  • Slip fit conduit terminal fittings also available: part numbers 6424 or 6271
  • Includes one 0.05 allen wrench and two adjustable barrel stops to attach to the carb choke arm (no swaging or soldering necessary)
Specifications:
  • Travel (stroke): 3.5" minimum
  • Conduit: 0.188 inch OD Teflon lined wound conduit
  • Max Work Loads: Pull: ~25 lbs (Not designed for push loads)
  • Minimum Locking Force: ~30 lbs
  • Operating Temp: -65 to 450 deg F (knob/housing assembly: -65 to 250 deg F)
  • Panel Fitting: 1/2-20 UNF thread
See McFarlane Turn-to-Lock Controls for further specifications.
Order part number: MCTL1014DLLL
-
K - where LLL is the the length of the control in inches and -K
 is a suffix indicating the style of knob indicated in the following table:
Knob Style Suffix (-K)Knob Style
-B Ball
-F Fluted
-T T-Handle
-P 4-Prong
-FL Fluted, engraved*
-TL T-Handle, engraved*
-PL 4-Prong, engraved*
* Engraved knobs are marked with a symbol indicating the direction to turn to lock the control.


These controls are not for use on certified aircraft, or for use for flight controls or flight control trim tabs.
