COMPACT IN-LINE SHUT OFF VALVE

$12.50/Each
Quantity
Add to Wishlist
Part# 15-05144
MFR Model# 11446

Overview

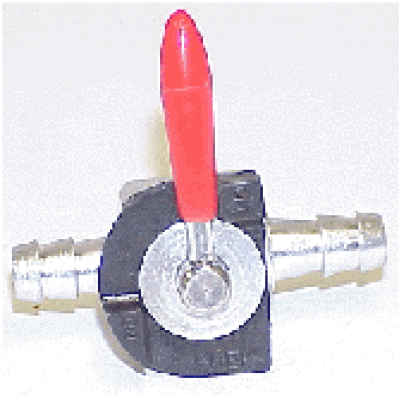

Ideal for in-line fuel shut off. Handle indicates valve position. Hose barbs accept any 1/4" id fuel line. Must be used with clamps. . Brass Construction. Weight 2 oz.

Dimensions

Reviews

My recent purchase was for a non aviation application however these fuel shut off valves perform perfectly and after many years of service are trouble free.

Chuck C
June 18, 2020

I needed a shut off valve for my gas tank in order to change the filter. It works great

Greg
April 13, 2020

Excellent product, good quality, fast and reliable shipping at a reasonable price. Thank you

C. B
December 9, 2019

great service

Frank D
September 23, 2019

Although we are not using these on an aircraft, we are using them on fuel lines. They are an excellent valve. They never tighten up, and we have never had a failure

Don G
August 12, 2019

Although we are not using this valve in an aircraft application we have been completely satisfied with it and the service that we have received Aircraft Spruce

Dong
January 28, 2019

excellent quality, as advertised and shown on line. Prompt shipping and very good service, in fact excellent. I made the right choice dealing with Aircraft Spruce

Jim S
April 20, 2017

Item was described as having brass construction. Brass is non-magnetic, but the body and shaft of this valve are magnetic (they stick to a magnet). The valve appears to have a stainless steel ball inside, typical of ball valves. Quality of construction looks good, and shipping was fast.

Bert B
May 15, 2018

Gerald
May 23, 2018

Q&A

Q: What is the throughput diameter of this valve? I had problems with vapour lock due to a restriction in a fuel valve and need to know the internal diameter. nico

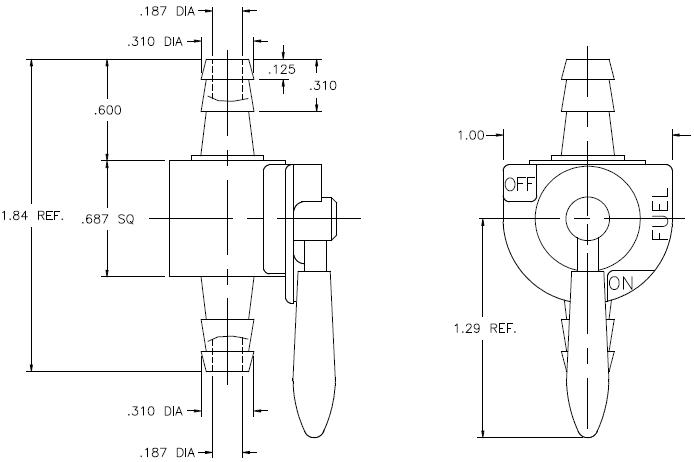

We have added a drawing to the web page showing all dimensions. Please see the "Dimensions" tab to determine if it will work in your application.

Q: Will this fit a 5/16 fuel line?

No, this is for a 1/4" ID hose.

Q: Are there any mounting features?

This does not come with a mount or hardware to mount it. The valve itself does not have a built in mount.
