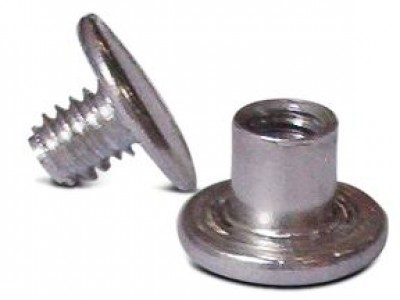

BAFFLE FASTENER 8-32

From $0.62 to $14.50
Description PN Price Buy
24 pc KIT 12 of aech
05-01829
$14.50
Quantity
MALE 8-32 THREAD
05-01235
$0.62
Quantity
FEMALE 8-32 THREAD
05-01236
$0.62
Quantity
Subtotal $0.00
Add to Wishlist

Overview

This engine baffle fastener kit makes attaching baffle material much easier.

8-32 Threads

Kit Contents

  • Qty 12: 05-01235 (BAFFLE FASTENER MALE 8-32 THREAD)
  • Qty 12: 05-01236 (BAFFLE FASTENER FEMALE 8-32 THREAD)
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

works good

John D Verified Purchase

BAFFLING FASTENER KIT (PKG 12)

September 9, 2021

worked fine with 1/8 Silicone Baffle Material

William T Verified Purchase

BAFFLING FASTENER KIT (PKG 12)

June 8, 2021

Used this on Cessna 172 for the dash nuts, worked great.

Robert F
January 28, 2019

Should be Phillips head. Easier to grab on backside

Paul B
February 13, 2021

The sleeve portion of the female side is too long, almost 3/16, so it wont clamp at all onto the baffle seal material through an aluminum baffle piece. Also because they are aluminum, once you tighten it once, it disturbs the threads at the end, and it is difficult to get the threads to start on a second assembly without chasing the thread with a tap. I sanded the sleeve portion down to 1/8 long and then they worked very well.

Steve
March 1, 2019

I was not impressed with this fastener system. I had to use washers in order to get the fastener to crimp down on the silicon baffle material. I ended up using machine screws and nyloc nuts for a much cleaner and functional result.

Kevin B
January 10, 2019

I was told that the head of the female fastener had a solid head. This is not correct. The head is drilled all the way thru. For my application I required a solid head.

Matt L
March 3, 2018

Neat concept / poorly executed / material too soft / very poor thread quality. Chucked them, went back to pop rivets for engine baffling.

Gene H
May 2, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these fasteners the same size as part number 05-56140?

Yes, they are both 1/8" NPT. We have added the kit component breakdown to the "Kit Contents" tab of this web page.

Q: What is the outside diameter of the threaded part of the female thread?

The outside dimension of the internal threaded tube is .202".

Q: What is the total length of the male baffle fastener in this kit, part # 05-01235?

The total length of 05-01235 is 5/16".

Q: What is the diameter of the head(s)? Looks to be ~0.4?

That is correct.
