Overview

Features

• An essential part of your landing gear maintenance checklist is the need for periodic lubrication of hard-to-get-at door hinge bushings. Achieving proper lubrication is challenging because access is difficult. If these bushings are not lubricated regularly, corrosion will result. This can cause the bushing and sleeve to fuse together over time, resulting in problems with the door rigging and the operation of the aircraft. This could lead to an inoperable gear door or the cracking of the gear door - a safety issue for sure and at best, an expensive repair. Our kit is insurance against the possibility of future problems.

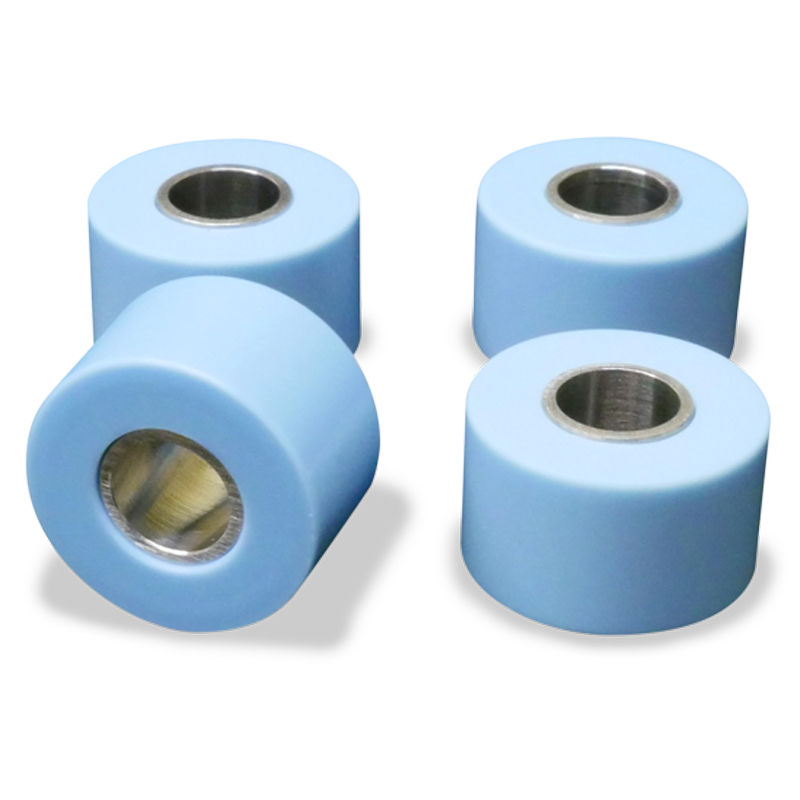

• The solution to this problem is AeroTough® GF polymer bushings. These non-metallic bushings can be easily installed and will provide smooth grease-free operation. AeroTough™ bushings will never require lubrication. The polymer material is designed to incorporate its own lubrication. If someone doesn’t know our bushings have been fitted and decides to squirt some lubrication into the hinges, it’s no problem. Our bushings are quite happy to run in oil or grease – it’s just not necessary!
• The Marsh Brothers Aviation kit includes not only the AeroTough® GF bushings, but also includes all new hardware to re-install your landing gear doors.

Specifications

• Approved for installation in Canadian & American Registered aircraft by Transport Canada Part Design Approval Certificate No. PDA20-1
• Reaming may be necessary, depending on any damage to the airframe (if damage is present, it is typically caused by corrosion of the OEM parts).

Approved Models

• 65-90, 65-A90, C90, E90, H90, C90A, C90GT, F90, 200, 200C, 200CT, 200T, B200, B200C, B200CT, B200T, B200GT, B200CGT, 300, 300LW, B300, B300C

Documents

• Product Data Sheet

In The Box
