 Landing Gear - Goodyear
| |
|
|
| |
(Click image for a larger view) | A "B" at the end of a description means BENT valve stem. An "S" at the end of a description means STRAIGHT valve stem.
- (1) For use in both 5.00-5 and G380x150-5 (15x6.00-5).
- (2) For use in both 6.00-6 and 15x6.00-6 tires
- (3) For use in both 7.00-6 and 8.00-6 tires.
- (4) For use in 6.50-8, 19.5x6. 75-8 & 22x8.00-8 tires.
- (5) Discontinued, call for Special Pricing
-Natural rubber aircraft tubes comply with the requirements of Goodyear QAI 2525, which the U.S. Military has accepted in lieu of MIL-I-5014.
-Flight Mate (Butyl) tubes comply with the requirements of SAE document AS 50141. |
|
| |
|
|
|
Click Here for GoodYear Tube Type Tires
Click Here for GoodYear Tubeless Tires
|
| Tube Size | Description | Avg
Weight
(lbs.) | PN | Price | Buy | | 5.00-4 Flight Mate | Butyl Tube AC 21, B | 1 | 06-01049 | $137.99 |
| | 5.00-4 Flight Mate | Butyl Tube TR 67, B | 1 | 06-04800 | $94.75 |
| | 5.00-5 Flight Mate | Butyl Tube TR 67A (1), B | 1 | 06-05000 | $74.75 |
| | 6.50-10 Flight Mate | Butyl Tube TR 25, S | 2 | 06-06000 | $65.90 |
| | 7.00/8.00-6 Flight Mate | Butyl Tube TR 20, (3), S | 2 | 06-06300 | $64.75 |
| | 7.50/8.50-10 Flight Mate | Butyl Tube TR 25, S | 3 | 06-07000 | $91.75 |
| | 8.50-6 Flight Mate | Butyl Tube TR 20, S | 3 | 06-01050 | $145.75 |

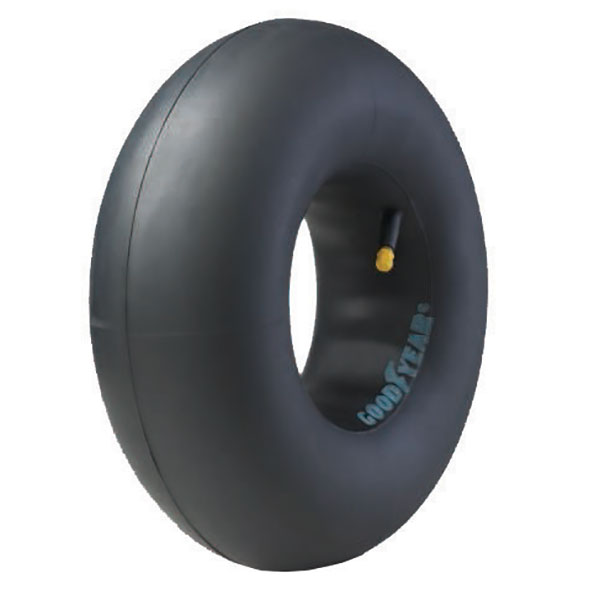

| | 8.90-12.50 Flight Mate | Butyl Tube TR 15, S | 6 | 06-01051 | $126.75 |
| | 11.00-12 | Reg. Tube TR 13, S | 7 | 06-01052 | $109.90 |
| | G15/6.00-6 Flight Mate, Also for 600 x 6 tires | Butyl Tube TR 67A, B | 1 | 06-05305 | $115.75 |
| | G15/6.00-6 Flight Mate, Also for 600 x 6 tires | Butyl Tube TR 20, (2), S | 1 | 06-05300-1 | $60.75 |
| | 17.00-16 | Reg. Tube TR 91G, B (5) | 14 | 06-01054 | $421.00 |
| | G19.5x6.75-8 Flight Mate | Butyl Tube TR 15, (4), S | 2 | 06-05700 | $64.75 |
|
|
|
