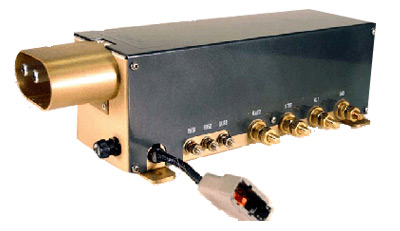

(Click image for a larger view) | The Lamar MC10 is a master electrical control unit developed for 14V and 24V single engine experimental aircraft. It is designed to mount on the firewall or fuselage. It houses all the major electrical components except for the battery, starter, and alternator. The MC10 provides a greater degree of protection against moisture, dust and accidental electrical shorts along with the convenience of all the primary electrical components in one location. Features low installation cost, ease of installation and simplified troubleshooting and repair with several new performance and safety features.
* All astricked items are available through OEM only. |
|
| |
|
|
|
- Master (battery) (solenoid) control closing the master switch on pilot's panel connects the battery to the primary bus
- 3 aircraft bus outputs, protected via resetable circuit breakers
- Alternator Control; voltage regulation, overvoltage protection, field output over-load protection, alternator feeder fault protection
- Starter control (solenoid)
- Low voltage warning.(L model also includes overvoltage, over-current and reverse-current annunciation)
- Battery charge/ discharge ammeter drive (current shunt)
- Clock output (always-on) pro-tected with easily accesible external mounted fuse
- Ground power receptacle & control (solenoid) with reverse polarity protection
|
| Lamar PN | Description | Applications | Part No. | Price | Buy | | A-00258-1 | Switch, Alternator INOP | Piper: PA23 Series, PA30, PA39, PA38, PA28, Series, PA32 Series, PA34-200T, PA34-220T, Maule*, Paytheon: A36, V358, F338, F33, F33A, F33C, E33a, V35A, 36 | 07-01146 | $96.75 |
| | A-00258-2 | Switch, Alternator INOP | Piper: PA23 Series, PA31 Series, PA34, PA31P, Twin Commander 700 Maule*, Raytheon: 57, E55., 5895B55, D55 | 07-01147 | $102.75 |
| | B-00266-2 | Overvoltage Relay, 28V, Piper | Piper: PA23-235, PA23-250, PA31 Series, PA36 Series, Islander*, BN2A, BN2B, BN2T. BN2T-4, Trislander*, BN2A MK 11 Series | 07-01148 | $298.95 |
| | B-00286-1 | Regulator, 28V, Parallel OP (twin) | Piper: PA23-235, PA23-250, PA31, PA300, PA44-180/180T, PA31P, PA34-220T, Cessna*. 421, 414, 402, 340, 310 | 07-01449 | $355.00 |
| | B-00288-1 | Regulator, 14V, Parallel OP (twin) | Piper: PA23-235, PA23-250, PA30, PA39, PA34-200T, PA34-220T, PA44-180, PA44-180T, Gulfstream Aero* | 07-01150 | $306.00 |
| | B-00289-2 | Overvoltage Relay, 14V | Piper: PA18, PA30, PA39, PA23-235, PA23-250, PA28 Series, PA32 Series, PA34-220, PA34-220T, Beech*: 19A, B19, M19A, 23, A23, A23A, A23-19, A23-24, B23, C23, A24, A24R, B24R, C24R, Bellanca*: 14-19, 19-2, 19-3, 19-3A, 17-30, 31, 31TC, 17-30A, 31A, 31ATC, Citabria*: 70CAA, 7ECA, 7GCBC, 1KCAB, Commander*: 112, B, TC, TCA, Cessna*: 175, 185, 188, Grumman*: AA-1, Lake* LA-4, A, P, Maule*: M-5-180C, 235C, M-6-180, 235, M-7-235, MX-7-180, 235, Varga*: 2150A | 07-01151 | $192.75 |
| | B-00306-3 | Regulator, 28V, Parallel OP (twin) | Piper: PA60, PA60-601, PA60-601P, PA60-602P, PA60-700P | 07-01153 | $382.00 |
| | B-00307-1 | Voltage Regulator, 28V | Twin Commander 700, 500s | 07-01454 | $266.95 |
| | B-00325-1 | Timer Pheumatic, 28V | Piper: PA23 Series, PA31 Series, PA31T Series | 07-01455 | $260.95 |
| | B-00331-2 | Voltage Regulator, Type 1, 14V | Piper: PA28, PA38 | 11-04130 | $205.95 |
| | B-00337-0 | Overvoltage Relay, 28V | Twin Commander 690C, 695, 695A, 690D, 695B | 07-01456 | $226.95 |
| | B-00337-1 | Overvoltage Relay, 28V | Twin Commander 700 | 07-01157 | $226.95 |
| | B-00341-1 | Time Delay Switch | Piper: PA31 Series, PA42-720 | 07-01158 | $580.00 |
| | B-00345-1 | Thermostat Control | Piper: PA31T, T1 | 07-01159 | $3704.00 |
| | B-00353-1 | Timer Module, Surface De-ice | Piper: PA31 Series, PA31P, PA42-720, PA42-1000 | 07-01161 | $681.00 |
| | B-00363-1 | Timer, Courtsey Light, Beech 28V | Raytheon: E55, 58, 58TC, 58P, 38P, 38P-1, 38P-2, 390 | 07-01162 | $212.95 |
| | B-00364-1 | Timer Courtsey Light (15 min) | Piper: PA42-720, PA42-1000, PA46-350, PA31T Series | 07-01163 | $192.75 |
| | B-00364-2 | Timer Courtsey Light (30 sec) | Piper PA31 Series, PA46-310, PA46-350 | 07-01164 | $192.75 |
| | B-00368-2 | Alternator Control, 28V Load | Piper PA28-240, PA28-150, PA28-151, PA-28-160, PA-28-161, PA-28-180, PA28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28R-201, PA-28R-201T, PA-28RT-201, PA-28RT-201T, PA-28S-160, PA-28S-180, PA-32-260, PA-32-300, PA-32-301, PA-32-301FT, PA-32-301T, PA-32-301XTC, PA-32R-300, PA-32R-301(HP), PA-32R-301(SP), PA-32R-301T, PA-32RT-300, PA-32RT-300T, PA-32S-300, PA-38-112 | 07-01803 | $459.00 |
| | B-00368-25 | Alternator Control, 28V Load | Experimental | 11-03164 | $259.95 |
| | B-00369-2 | Timer (15 sec) | Piper: PA31T3 | 07-01166 | $258.95 |
| | B-00371-1 | Alternator Control, 14V | Piper: PA28 Series, PA32 Series, PA38, Bellanca*: 80CB, 8KCAB, Maule*: M-5-180C, 235C, M-7-235, MT-7-235, M-8-235, MX-7-180, MXT-7-160, 180, 235, Aviat*: Pitts S-2B, S2S, Zenair*: Zenith 2000 | 07-01167 | $302.00 |
| | B-00372-1 | Alternator Control, Load Balancing | Raytheon: 58, E55, 95B55 | 07-01168 | $674.00 |
| | B-00375-1 | Monitor Low Voltage | Twin Commander 690C, 690D, 695, 695A | 07-01169 | $81.75 |
| | B-00375-2 | Monitor Low Voltage | Piper: PA31P, PA31T Series, PA34 Series, PA46-310, PA46-350, PA31 Series | 07-01170 | $83.75 |
| | B-00378-4 | Monitor Low Voltage, 14V | Experimental | 11-03166 | $175.99 |
| | B-00380-1, B-00380-2 | Sensor-Alt Out, 28V Pulsed | Raytheon: 58, E55, 95B55 | 07-01171 | $93.75 |
| | B-00382-1 | Alternator Control, 28V Load | Piper: PA31-350, PA34-220, PA46-310, PA46-350, PA31 | 07-01172 | $670.00 |
| | B-00387-1 | Voltage Regulator with Overvoltage Protection, 28V | Raytheon: A36, F33A, B36TC, 58, V35B, F33C | 07-01173 | $398.00 |
| | B-00392-1 | Alternator Control, 14V, Piper | Piper: PA44-180, PA44-180T | 07-01174 | $569.00 |
| | B-00393-1 | Motor Control | Piper: PA46-310P, PA60-700P | 07-01175 | $603.00 |
| | B-00396-2 | Dimmer Assembly 14V/28V | Experimental | 11-03165 | $194.75 |
| | B-00403-1 | Voltage Regulator with Overvoltage Protection, 14V | Raytheon: F33A, F33C, V35B, A36 | 07-01176 | $388.00 |
|
|
|
