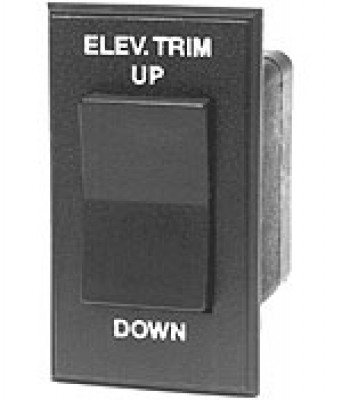

 | Very positive snap action in 2 directions and returns to a center off position. It was designed specifically for Ray Allen trim systems. It is wired to connect both power leads to ground when the rocker is released. This eliminates motor coasting and allows very precise trimming. The RS2 switch is rated at 1amp. The faceplate measures 1.75" (44mm) x 1.0" (25mm) x 1.47" (37mm) deep. Self adhesive labels are not included. Sold separately.
Click here to view the installation in PDF format |
|
| |
|
| Description |
Part No. |
Price |
Buy |
| RAC R2S ROCKER SWITCH | 11-02035 | $30.50 |
|
|
| Accessories |
Part No. |
Price |
Buy |
| RAC AILERON TRIM LABEL LARGE FOR R2S ROCKER SWITCH | 11-01816 | $0.60 |
|
| RAC WING FLAP LABEL LARGE FOR R2S ROCKER SWITCH | 11-01818 | $0.60 |
|
| RAC RUDDER TRIM LABEL LARGE FOR R2S ROCKER SWITCH | 11-01819 | $0.60 |
|
| RAC ELEVATOR 1 TRIM LABEL LARGE FOR R2S ROCKER SWITCH | 11-01822 | $0.60 |
|
| RAC COWL FLAP LABEL LARGE FOR R2S ROCKER SWITCH | 11-01576 | $0.60 |
|
| RAC ELEVATOR 2 TRIM LABEL LARGE FOR R2S ROCKER SWITCH | 11-03190 | $0.60 |
|
|
| Similar Items |
Part No. |
Price |
Buy |
| RAC 4-WAY SWITCH | 11-02075 | $85.90 |
|
|
