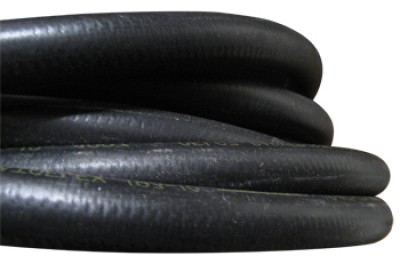

(Click image for a larger view) | Specifications: Hose meets or exceeds the requirements of MIL-H-5593.
Construction:
Tube - Seamless Buna - N.
Reinforcement - One braid of high tensile fiber cord.
Cover - Synthetic rubber.
Identification: LP-MIL-H-5593-size, date of manufacture, manufacturer's code (CAGE) marked on one side of the hose. Stratoflex 193-size marked on other side of hose. Yellow markings are repeated every 12 inches.
Application: Low pressure air and vacuum instrument systems. Vacuum service 20"Hg sizes -2 thru -6; 10"Hg sizes -8and -10.
Temperature range: -65 to +165°F
(-54 to +74°C) |
